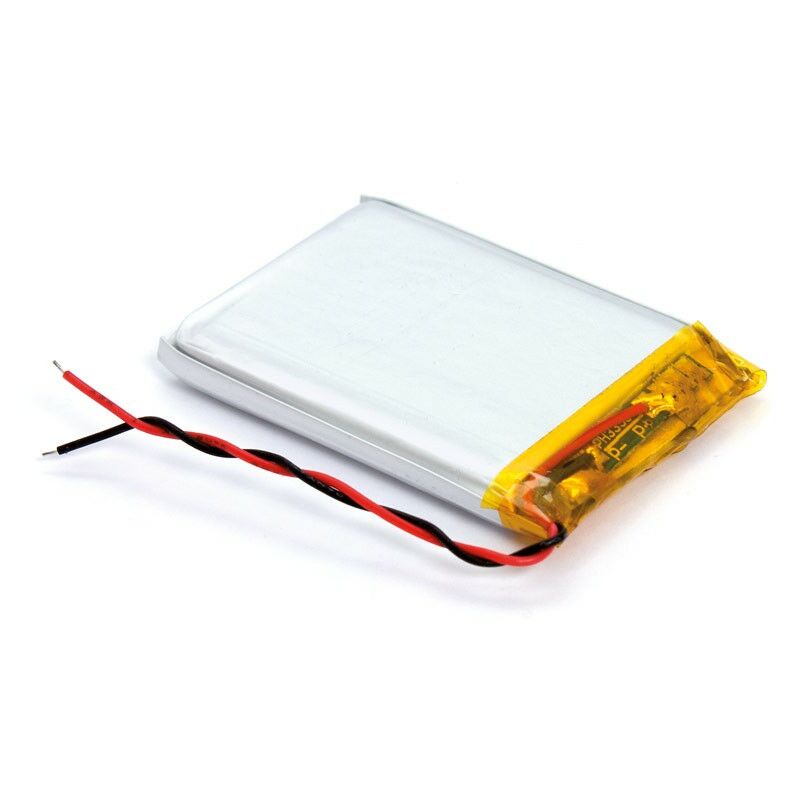

Lithium-Polymer Battery 1

Categoria:

Descrizione

Application:
Widely used in mobile phones, notebook computers, consumer electronics, military, aviation products and so on.

NO. Series Model Capacity
(mAh)		 MaxThick (mm) MaxWidth (mm) MaxHeight (mm) Weight
(g)		 Resistance
(mΩ)		 Voltage
(V)
1 3048 503048 750 5.20 30.4 48.6 16 50 3.7
2 603048 860 6.20 30.4 48.6 18 45 3.7
3 703048 1000 7.20 30.4 48.6 22 40 3.7
4 3270 773270 1800 7.70 32.5 70.5 40 30 3.7
5 3450 523450 900 5.70 34.8 51.0 25 35 3.7
6  603450 1000 6.20 34.0 50.8 30 50 3.7
7 753450 1300 7.70 34.8 51.0 30 35 3.7
8 803450 1350 8.20 34.4 50.5 18 65 3.7
9 853450 1400 8.70 34.4 50.5 20 60 3.7
10 103450 1600 10.2 34.4 50.5 25 55 3.7
11 3462 603462 1250 6.10 34.0 62.0 30 18 3.7
12 3476 603476 1500 6.10 34.8 76.6 35 30 3.7
13 3480 553480 1500 5.50 34.8 80.8 55 25 3.7
14 603480 1700 6.10 34.8 81.0 55 35 3.7
15 613480 1800 6.20 34.8 80.0 26 30 3.7
16 733480 1900 7.50 34.8 79.8 30 28 3.7
17 803480 2000 8.00 34.8 80.0 40 20 3.7
18 3496 443496 1400 4.40 34.5 96.5 35 35 3.7
19 553496 1900 5.55 34.5 96.5 35 35 3.7
20 603496 2800 6.00 34.5 96.5 36 34 3.7
21 3562 553562 1200 5.80 35.8 62.8 25 45 3.7
22 3759 503759 1200 5.10 37.8 59.8 25 35 3.7
23 563759 1300 5.70 37.3 59.8 25 40 3.7
24 3770 663770 2000 6.70 37.8 71.0 60 35 3.7
25 753770 2200 7.50 37.8 70.8 60 30 3.7
26 3795 753795 2850 7.50 37.0 95.0 65 25 3.7
27 3855 903855 2000 9.20 38.0 55.0 35 40 3.7
28 3975 503975 1500 5.00 39.5 75.0 30 35 3.7
29 3984 643984 1600 6.40 39.8 84.8 30 20 3.7
30 4070 634070 2000 6.35 40.0 70.5 50 35 3.7
31 724070 2400 7.20 40.0 70.7 55 23 3.7
32 4085 654085 2350 6.55 40.0 85.0 55 25 3.7
33 4088 534088 2000 5.30 40.0 88.0 55 22 3.7
34 4169 474169 1500 4.90 42.0 70.0 30 40 3.7
35 634169 2000 6.50 41.6 69.8 55 28 3.7
36 734169 2100 7.30 41.8 69.8 55 28 3.7
37 804169 2650 8.20 41.6 69.6 70 25 3.7
38 834169 2750 8.30 41.6 69.6 65 25 3.7
39 4174 584174 1850 5.90 41.5 74.5 40 30 3.7
40 654174 2100 6.50 41.5 74.5 55 23 3.7
41 804174 2800 8.20 41.0 74.5 50 22 3.7
42 904174 3000 9.00 41.5 74.5 60 22 3.7
43 4177 894177 3100 8.90 41.0 77.0 70 25 3.7
44 4260 644260 1700 6.40 42.0 60.5 30 30 3.7
45 4261 494261 1400 4.90 42.0 61.0 25 30 3.7
46 604261 1600 6.00 42.0 61.0 35 35 3.7
47 684261 1800 6.80 42.8 61.5 40 30 3.7
48 704261 2000 7.05 42.8 61.5 50 22 3.7
49 4461 014461 180 1.00 44.2 61.0 100 3 3.7
50 464461 1350 4.65 44.5 61.5 30 35 3.7
